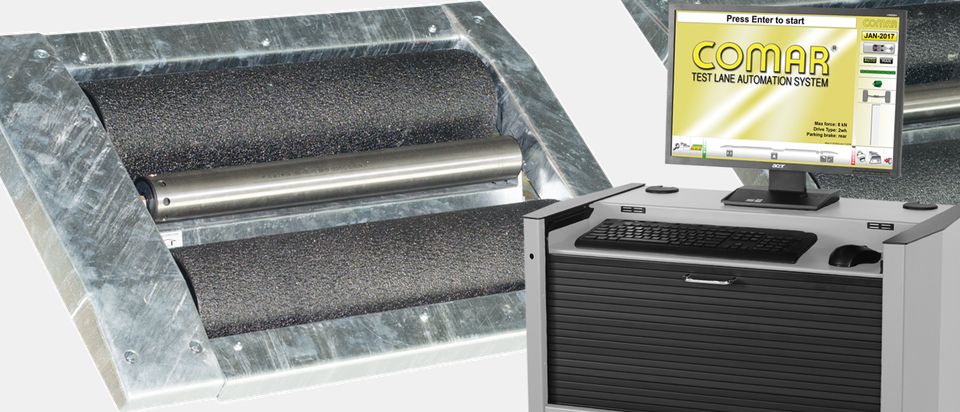

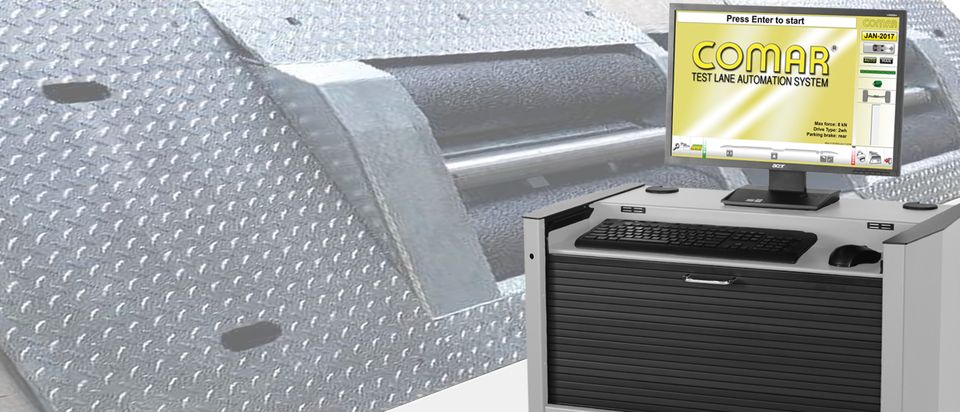

TD5022 Console

The Comar TD5022 freestanding console for roller brake testers and test lanes up to 40 kN. It is designed for operators who prefer a monitor read-out.

Several combinations of equipment, peripherals and accessories can be connected to create a test lane for heavy vehicles exactly adapted to the needs and possibilities in the workshop.


Options supplied as standard!


The TD5022 is standard supplied with a PC with Windows® and LaneComm®-Atlas test lane software, widescreen PC monitor, keyboard, mouse and infra-red remote control hand set. The TD5022 is designed as a working desk for the operater to enter customer data, analise test results, make a print out or transfer data.

4200L-HalfOpen-Comar-RAL7004-EN (980x1816).png
In short
  • For repairs.
  • For inspections.
  • As a sales tool.
  • Easy to operate.
  • Easy to understand.
  • Fast, reliable and convincing.
LaneComm®-Atlas test lane software
  • Manual- and automatic test program.
  • PC network (LAN) capabilities.
  • Multi-lane facility.
  • Vehicle testing queue.
  • Remote data transmission for data exchange or integration into specific country related networks.
  • Extensive database for storage of vehicle and customer data, legal limits and test results.
  • Infra red remote control for operation of all functions of the roller brake test lane.
  • 4x4 reversible roller kit included.

Specifications

TD5022
Dimensions
83 x 50 x 122 cm

Options

  • Printer

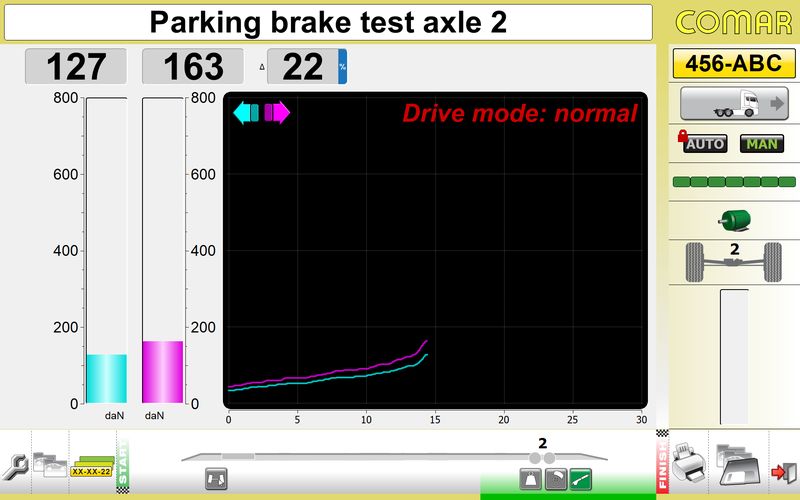

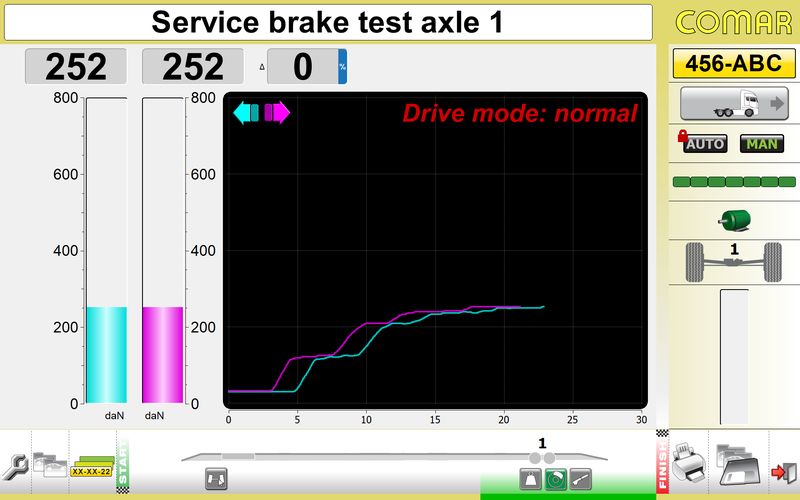

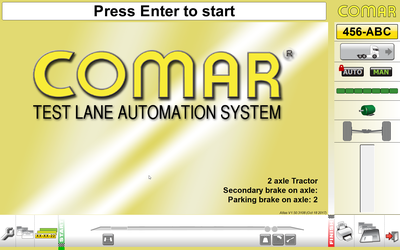

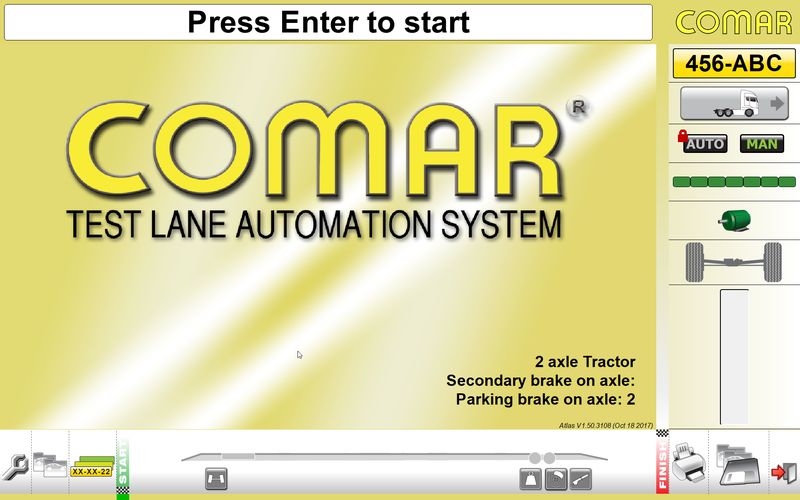

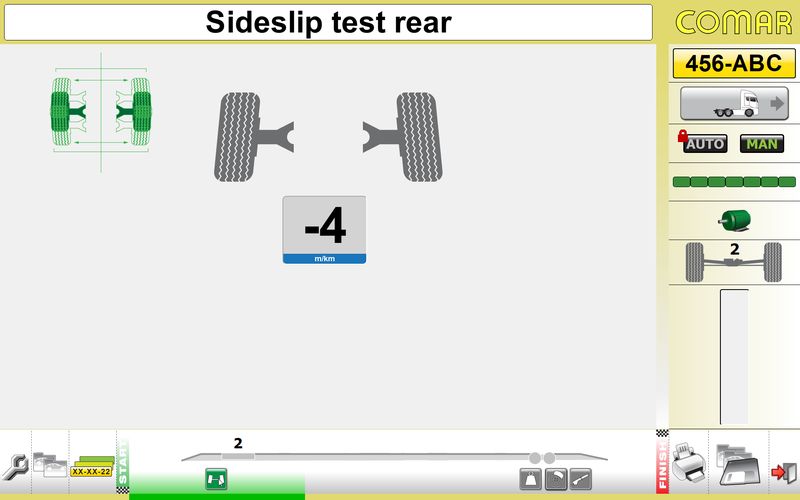

Impression Atlas

Atlas-Comar LKW1 (1920x1200).png
Atlas-Comar LKW2 (1920x1200).png
Atlas-Comar LKW3 (1920x1200).png
Atlas-Comar LKW4 (1920x1200).png
